Shielding Gas Regulator for MIG and TIG Welding Gases. Single Stage, 2 Guage, 300Bar. 30lpm flow

Description

PRODUCT INFORMATION: SINGLE STAGE 2 GAUGE REGULATOR
DESCRIPTION
This single-stage two-gauge regulator is designed to step the
pressurized contents of a compressed gas cylinder down to a
pressure that can be used in Oxy/Acetylene Cutting/Welding or
Argon/CO2 Shielded MIG / TIG welding.

INFORMATION: The design of this regulator ensures that pressure is reduced from cylinder pressure (300 Max Bar Argon / Oxygen, 20
Bar Acetylene) and can be set to a suitable working pressure. These actions take place in a single chamber making this
particular model ideal for use where precise pressure settings over a period of time are not essential.

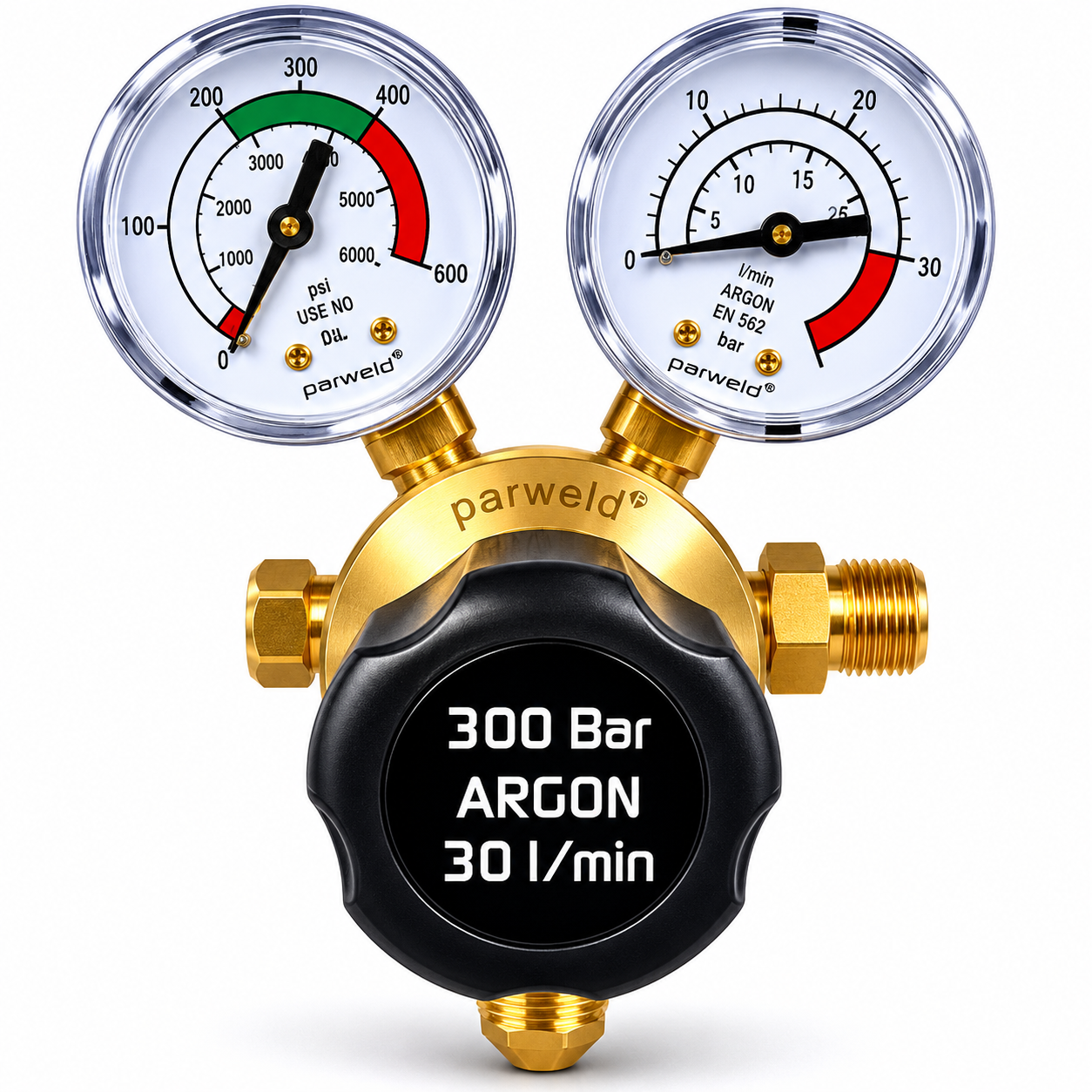

This product features two gauges, which display bottle contents and output pressure. Output pressure is controlled by the
centre dial (pressure adjustment knob) which, when fully wound out, sets the pressure to 0 bar.
This model is of bottom-entry design, making it best suited to top-outlet valve cylinders. They can be used with side-outlet
valve cylinders with the addition of a 90° adaptor (DA90LH/RH).
In addition, a range of Side-entry regulators are available with the part number suffix ‘SEEXT’

Part Number Product Description
AE3005LX 1S 2G ARGON REGULATOR
Oxy/Argon Acetylene
Maximum Outlet Pressure 10 Bar 1.5 Bar
Inlet Pressure 300 Bar 20 Bar
This product conforms to the criteria laid out under
British Standard BS EN ISO 2503 : 2009
