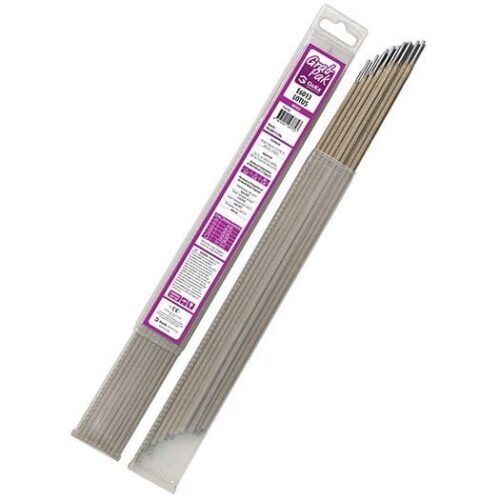

GrabPak – 6013 LOTUS Electrodes (2.5mm) 0.5kg – rutile – free delivery (England, Scotland & Wales excluding Scottish Highlands and Islands)

Description

GrabPak is a handy and convenient way of supplying customers with just the right amount of electrodes for any small jobs in the home or workplace. Designed to increase sales through the presentation of our popular welding consumables in a rotating stand with full colour coded 0.5kg packaging.



LOTUS is a premium 6013 medium coated all positional electrode suitable for welding in vertical down. Superior performance that has exceptional arc stability, easy start and restart properties with self-removing slag.



Features and Applications

Electrode coating of medium thickness

Electrode coating of flexible type, providing electrode bendability

Usability in welding of materials in hard to reach places

Suitable for welding in vertical-down welding position



Typical Base Material Grades

S 235JR, S275JR, S235J2G3-S355J2G3, P235 GH, P265GH, P255NH, P235T1-P355T1, P235T2-P355T2, P235G1TH, P255G1TH, L210-L360NB, S235JRS1-S235J2S1, S235JRS2-S235J2S2



Standards	Current Type
EN ISO 2560-A – E 42 0 RC 11	D.C. (-) (+) / A.C.
AWS A5.1 – E6013



Chemical Composition of Weld Metal % (Typical)
C	Si	Mn
0.07	0.3	0.4



Mechanical Properties
Yield Strength (N/mm2)	Tensile Strength (N/mm2)	Impact Strength (ISO-V/0ºC)	Elongation (Lo=5do)(%)
min. 420	510 – 610	min. 47 J	min. 22



Welding Positions



Operating Data
Diameter x Length (mm)	Welding Current (A)	Package Weight (Kg)	No. Pieces Approx
2.00 x 350 2.50 x 350 3.20 x 350	45 – 80 60 – 110 90 – 140	0.5 0.5 0.5	TBC 21 18

Liability: Whilst all reasonable efforts have been made to ensure the accuracy of the information contained. This information is subject to change without notice and can be only considered as suitable for general guidance.
