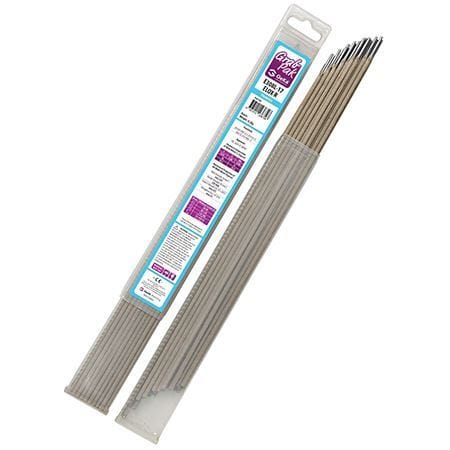

GrabPak – 316L-17 ELOX R Electrodes (3.2mm) 0.5kg -STAINLESS – free delivery (England, Scotland & Wales excluding Scottish Highlands and Islands)
£22.38
Description
GrabPak is a handy and convenient way of supplying customers with just the right amount of electrodes for any small jobs in the home or workplace. Designed to increase sales through the presentation of our popular welding consumables in a rotating stand with full colour coded 0.5kg packaging.
Rutile coated low carbon electrode for use in tanks, pipes which are used in the food, textile, chemical and paint industries.
Features and Applications
Rutile coated low carbon electrode for use in tanks, pipes and equipment’s made of Cr-Ni-Mo low carbon steels which are used in food, textile, chemical and paint industries
Weld metal is resistant to acid corrosion
Serviceability at temperatures up to 400°C
Requirement of re-drying for min. 2 hours at temperatures between 120°C-200°C
Typical Base Material Grades
EN: X10CrNiMoNb 18 12, X2CrNiMo 18 14 3, X5CrNiMo 17 13 3, X2CrNiMo 17 13 2, X2CrNiMoN 17 12 2, X5CrNiMo 17 12 2, X5CrNiMoTi 17 12 2, X6CrNiMoNb 17 12 2, X2CrNiMoN 17 13 3.
AISI: 316Cb, 316, 316L, 316Ti
| Standards | Current Type |
| EN ISO 3581-A – E 19 12 3 L R 32 | D.C. (+) / A.C. |
| AWS A5.4 – E 316L-17 |
| Chemical Composition of Weld Metal % (Typical) | |||||
| C | Si | Mn | Mo | Ni | Cr |
| 0.03 | 0.8 | 0.9 | 2.6 | 11.5 | 19.0 |
| Mechanical Properties | |||
| Yield Strength (N/mm2) |
Tensile Strength (N/mm2) |
Impact Strength (ISO-V/+20ºC) |
Elongation (Lo=5do)(%) |
| min. 355 | 540 – 670 | min. 47 J | min. 30 |
Welding Positions
| Operating Data | |||
| Diameter x Length (mm) | Welding Current (A) | Package Weight (Kg) |
No. Pieces Approx |
| 2.50 x 250
3.20 x 350 |
50 – 90
80 – 120 |
0.5
0.5 |
TBC
TBC |
Liability: Whilst all reasonable efforts have been made to ensure the accuracy of the information contained. This information is subject to change without notice and can be only considered as suitable for general guidance.
