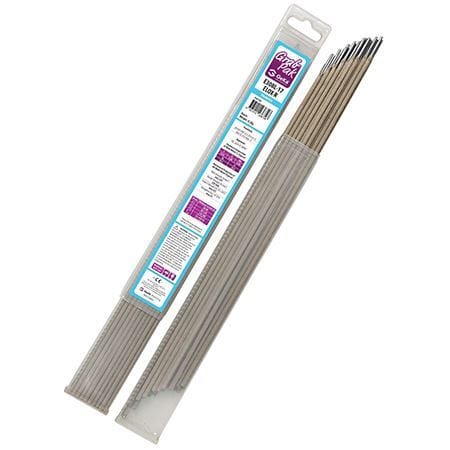

GrabPak – 308L-17 ELOX R Electrodes (3.2mm) 0.5kg – STAINLESS – free delivery (England, Scotland & Wales excluding Scottish Highlands and Islands)

£22.39

Shipping class: Free Shipping

Description

GrabPak is a handy and convenient way of supplying customers with just the right amount of electrodes for any small jobs in the home or workplace. Designed to increase sales through the presentation of our popular welding consumables in a rotating stand with full colour coded 0.5kg packaging.



Stainless steel rutile coated low carbon electrode for use in chemical, petrochemical and food industries. Ideal use in high carbon grade steels as well as ferritic 13% – Cr steels.



Features and Applications

Rutile coated low carbon electrode for use in chemical, petrochemical and food industries where similar steel types, including higher carbon grades as well as ferritic 13% – Cr steels are welded

Resistant to corrosion and cracks

Working temperatures up to +300°C – 350°C

Requirement of re-drying for min. 2 hours at temperatures between 120°C-200°C



Typical Base Material Grades

X2CrNi 19 11, X5CrNi 18 10, X6CrNiTi 18 10, X6CrNiNb 18 10, X6CrNiNb 18 10,
X10CrNiNb 18 10, X12CrNi 18 8, 304 L, 304, 304 LN, 321, 347, 302



Standards Current Type
EN ISO 3581-A – E 19 9 L R 32 D.C. (+) / A.C.
AWS A5.4 – E 308L-17



Chemical Composition of Weld Metal % (Typical)
C Si Mn  Ni Cr
0.03 0.8 0.9 10.5 20.0



Mechanical Properties
Yield Strength
(N/mm2)
Tensile Strength
(N/mm2)
Impact Strength
(ISO-V/+20ºC)
Elongation
(Lo=5do)(%)
min. 355 520 – 660 min. 47 J min. 35



Welding Positions



Operating Data
Diameter x Length (mm) Welding Current (A) Package
Weight (Kg)
No. Pieces Approx
2.50 x 250

3.20 x 350

50 – 90

80 – 120

0.5

0.5

TBC

TBC

Liability: Whilst all reasonable efforts have been made to ensure the accuracy of the information contained. This information is subject to change without notice and can be only considered as suitable for general guidance.
